Resizable layouts · Zaniah Docs

Import

Load the optional component layer before using the examples below.

Ruby

require "zaniah/ui"

Split and resize

SplitPane separates two elements. PaneGrid supports a resizable grid with stable pane IDs.

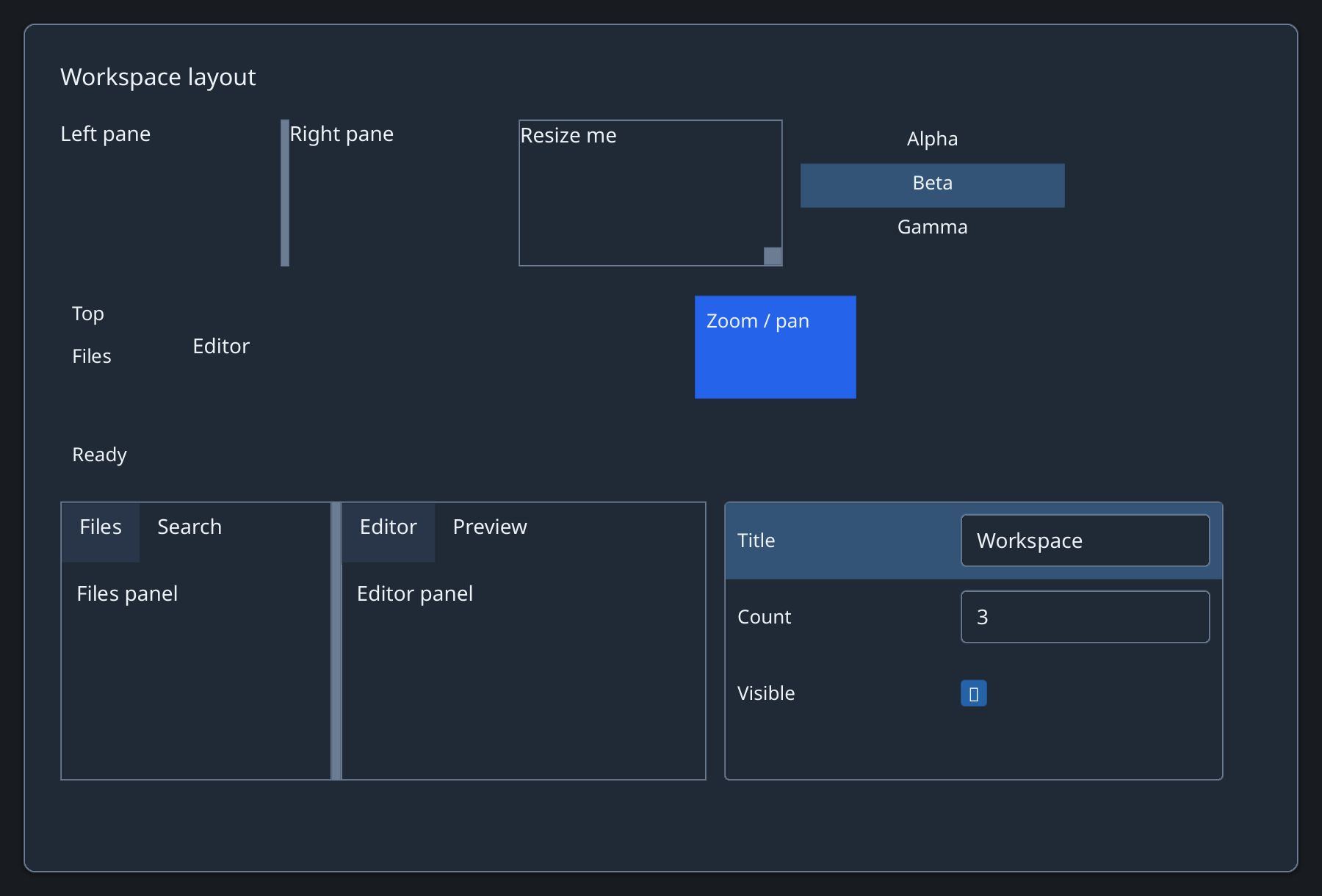

Split pane, resizable view, and selectable list in a Zaniah workspace. — Rendered by Zaniah's headless backend.

Ruby

Zaniah::UI::SplitPane.new(
  Zaniah::UI::Label.new("Files"),
  Zaniah::UI::Label.new("Editor"),
  ratio: 0.35)
Zaniah::UI::Resizable.new(
  Zaniah::UI::Label.new("Resize me"), width: 180, height: 100)

Five-region dock panel

DockPanel is a simple top/right/bottom/left/center layout; use DockWorkspace when users need draggable tabs.

Ruby

Zaniah::UI::DockPanel.new(
  center: Zaniah::UI::Label.new("Editor"),
  left: Zaniah::UI::Sidebar.new(
    Zaniah::UI::Label.new("Files"), width: 160))

Pane grid

PaneGrid assigns a stable ID and content to each pane; track sizes use Zaniah layout units.

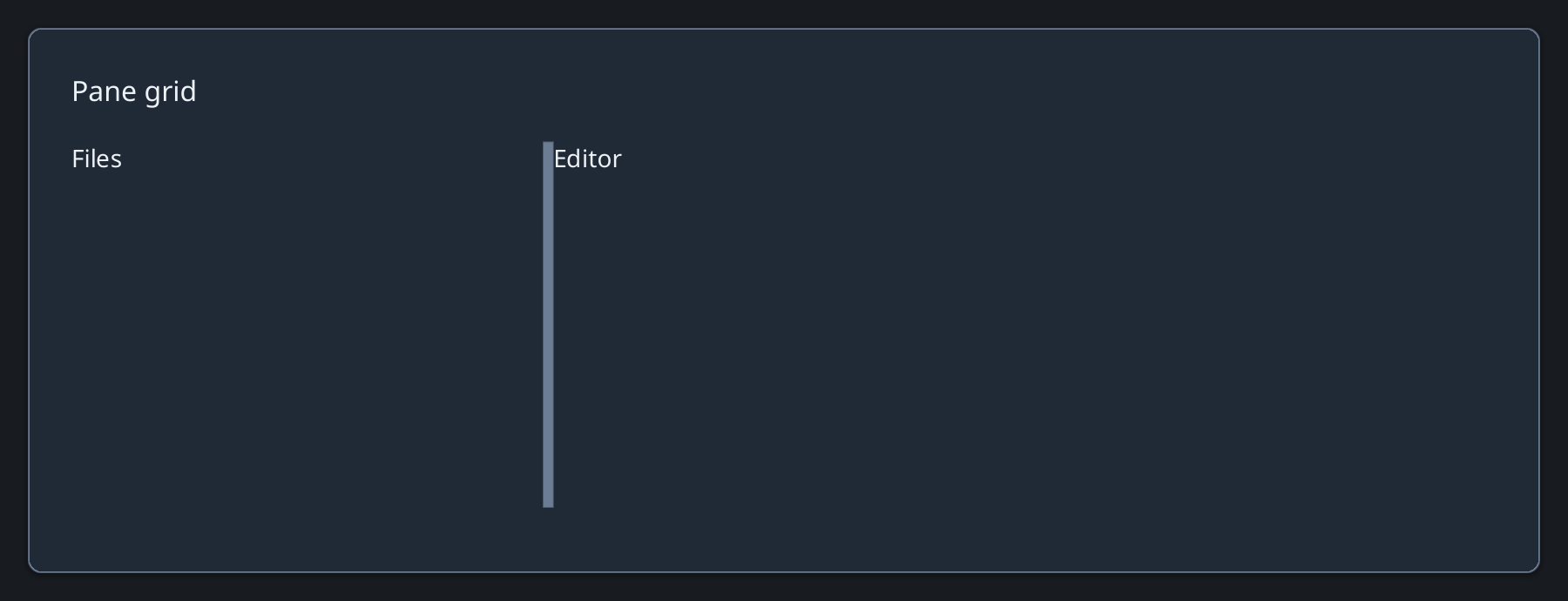

Two resizable panes labeled Files and Editor. — Rendered by Zaniah's headless backend.

Ruby

Zaniah::UI::PaneGrid.new(
  [[[:files, Zaniah::UI::Label.new("Files")],
    [:editor, Zaniah::UI::Label.new("Editor")]]],
  columns: [Zaniah.fr(1), Zaniah.fr(2)],
  rows: [Zaniah.fr(1)])

Virtual list and zoom

ListView virtualizes long lists. ZoomPanView pans and scales content without changing its local coordinates.

Ruby

Zaniah::UI::ListView.new(%w[Alpha Beta Gamma],
  height: 100, selected: 1)
Zaniah::UI::ZoomPanView.new(
  Zaniah::UI::Label.new("Canvas"), zoom: 1.3)

API summary

Constructor options and behaviors are drawn from the component reference.

Component	Constructor and methods	Variants or behavior
`SplitPane`	`(first, second, orientation:, ratio:, min:, max:)`; `on_change`	horizontal/vertical, draggable separator
`PaneGrid`	`(panes, columns:, rows:, divider_size:, minimum:, keyboard_step:)`; `replace`, `on_resize`	arbitrary resizable grid, stable pane IDs
`Resizable`	`(content, width:, height:, min_width:, min_height:, max_width:, max_height:)`; `on_resize`	drag or keyboard resize
`ZoomPanView`	`(content, zoom:, min_zoom:, max_zoom:)`; `fit`, `zoom_to`, `view_to_content`	drag to pan, pinch or Ctrl+wheel to zoom, `+`/`-`/`0` when focused
`DockPanel`	`(center:, top:, right:, bottom:, left:)`	five-region layout
`ListView`	`(items, height:, row_height:, selected:)`; `on_select`	virtual rows and keyboard selection

Accessibility

Resizable separators are keyboard operable. Lists expose list and listitem roles; zoom shortcuts work when focused.

Component	Semantic role
`SplitPane`	group/separator
`PaneGrid`	group/separator
`Resizable`	group/separator
`ZoomPanView`	group
`DockPanel`	group
`ListView`	list/listitem
